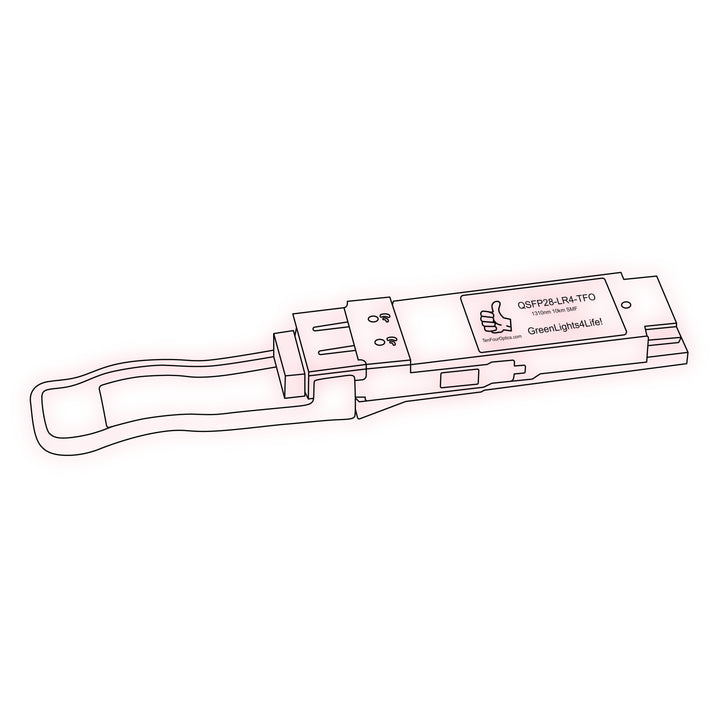

BRC-100G-LR4 Brocade/Ruckus Compatible 100G QSFP28 LR4 10km SMF Transceiver

A 100G QSFP28 running LR4 at 1310nm over single-mode fiber to 10km on a duplex LC — the Brocade/Ruckus-coded version of exactly that optic is the BRC-100G-LR4. That reach and 1310nm window place it on campus and metro uplinks where 100G leaves the wiring closet on existing single-mode plant. It is coded for Brocade/Ruckus switching gear and is hot-swappable.

• Form Factor: QSFP28
• Data Rate: 100G
• Protocol: LR4
• Wavelength: 1310nm
• Fiber Type: SMF
• Reach: 10km
• Connector: Duplex LC
• OEM Equivalent: BRC-100G-LR4

Compatibility: The BRC-100G-LR4-TFO is TenFour Optics' compatible equivalent of the Brocade/Ruckus BRC-100G-LR4, coded per order for your platform. Brocade/Ruckus lists the BRC-100G-LR4 for use in 100G QSFP28 ports on: Brocade MLXe, Brocade SLX 9140, Brocade SLX 9240, Brocade SLX 9540, Brocade SLX 9850, Brocade VDX 6940, Brocade VDX 8770, Ruckus ICX 7550 Series, Ruckus ICX 7650 Series, and Ruckus ICX 7850 Series. Please add your switch model and OS release in the order notes, or email 10.4@tenfouroptics.com.

Tested & Proven: Every TenFour Optics part is coded, tested, and verified before shipment — see Tested & Proven.

MSA-compliant and individually checked — host coding and DDM reporting — before shipment. Backed by the GreenLights4Life® Limited Lifetime Replacement Warranty. In-stock items ship same or next business day.

Download datasheet (PDF)
