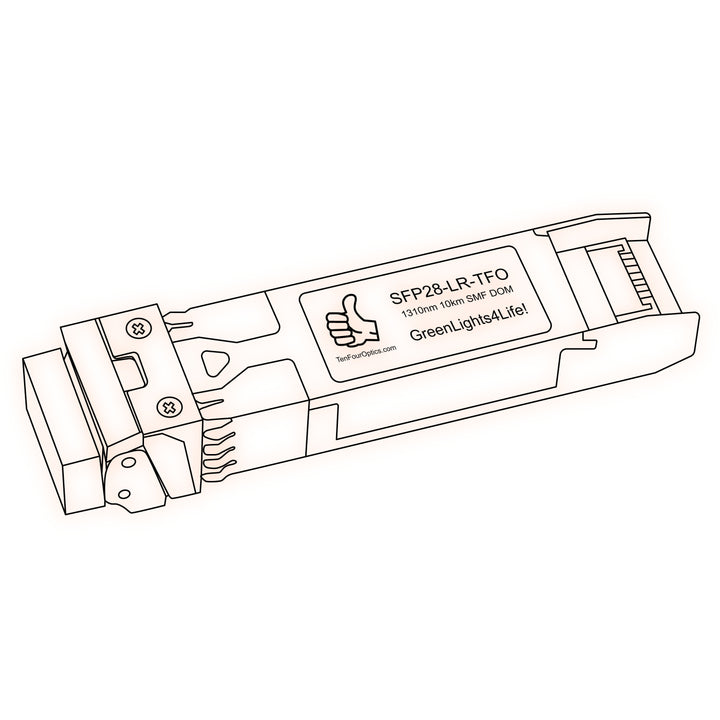

PAN-25G-LR Palo Alto Compatible 25G SFP28 LR 10km SMF Transceiver

The PAN-25G-LR is a 25G SFP28 optical transceiver compatible with Palo Alto platforms.

• Form Factor: SFP28
• Data Rate: 25G
• Protocol: LR
• Wavelength: 1310nm
• Fiber Type: SMF
• Reach: 10km
• Connector: Duplex LC
• OEM Equivalent: PAN-25G-LR

Compatibility: The PAN-25G-LR-TFO is TenFour Optics' compatible equivalent of the Palo Alto Networks PAN-25G-LR, coded per order for your platform. Palo Alto Networks lists the PAN-25G-LR for use in 25G SFP28 ports on: PA-5410 Next-Gen Firewall, PA-5420 Next-Gen Firewall, PA-5430 Next-Gen Firewall, PA-5440 Next-Gen Firewall, PA-3410 Next-Gen Firewall, and PA-3440 Next-Gen Firewall. Please add your switch model and OS release in the order notes, or email 10.4@tenfouroptics.com.

Tested & Proven: Every TenFour Optics part is coded, tested, and verified before shipment — see Tested & Proven.

OEM-compatible and MSA-compliant. Compliance documentation (RoHS declaration, IEC 60825-1 laser classification) is available on request for project quotes. Digital Diagnostic Monitoring (DDM/DOM) supported. Every module is tested for traffic conformity per supported layer 2/3 protocols, DOM threshold verification, EEPROM/MSA value verification, serial number verification, and optical cleanliness before shipment.

Backed by the GreenLights4Life® Limited Lifetime Replacement Warranty. In-stock items ship same or next business day.

Download datasheet (PDF)
