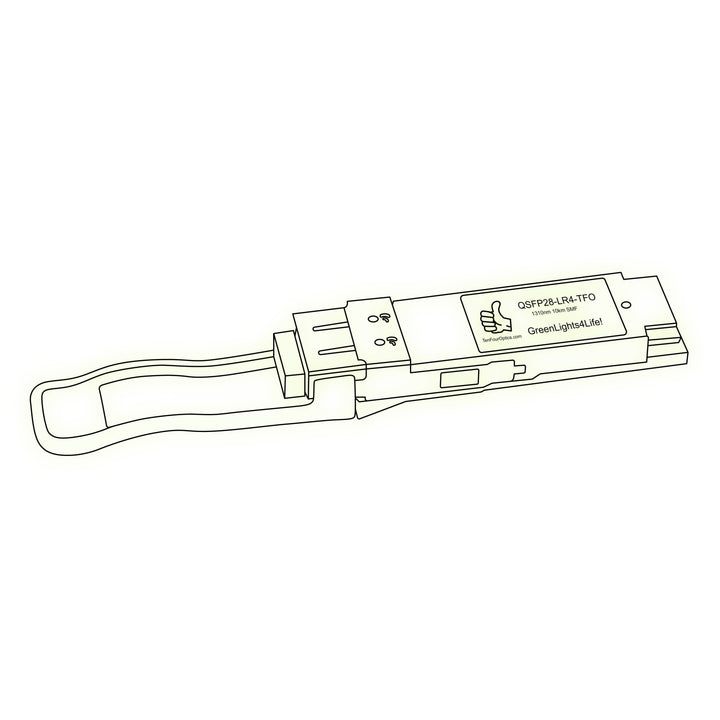

QSFP-100G-LR Juniper Compatible 100G QSFP28 LR4 10km SMF Transceiver

The QSFP-100G-LR is a 100G QSFP28 optical transceiver engineered as a drop-in equivalent for Juniper platforms.

• Form Factor: QSFP28
• Data Rate: 100G
• Protocol: LR4
• Fiber Type: SMF
• Reach: 10km
• Connector: Duplex LC
• OEM Equivalent: QSFP-100G-LR

Compatibility: The QSFP-100G-LR-TFO is TenFour Optics' compatible equivalent of the Juniper QSFP-100G-LR, coded per order for Juniper platforms. Juniper lists the QSFP-100G-LR for use in 100G QSFP28 ports on: ACX Series, EX4650 Series, MX204/MX Series, PTX10000 Series, QFX10000 Series, QFX5120 Series, QFX5130 Series, and QFX5200 Series. To confirm fit for a specific line card or OS release, email 10.4@tenfouroptics.com.

Tested & Proven: Every TenFour Optics part is coded, tested, and verified before shipment — see Tested & Proven.

At single-mode reach this module bridges the middle ground — access to aggregation, building-to-building campus links, and short data-center interconnect spans that outrun multimode but never need amplification. The single-mode path keeps the signal clean across the full distance over existing OS1 and OS2 plant. It operates 10km.

Host-programmed and qualified against Juniper platforms, it slots in beside existing OEM and third-party optics, reports clean DDM telemetry, and needs no special configuration to bring the link up.

We program each module to the Juniper host EEPROM and run it through traffic, DOM, and optical-cleanliness checks before it ships. Compliance documentation (RoHS declaration, IEC 60825-1 laser classification) is available on request for project quotes.

Backed by the GreenLights4Life® Limited Lifetime Replacement Warranty. In-stock items ship same or next business day.

Download datasheet (PDF)
